Starting the VFO for the Pixie. LCD Screen and Rotary Encoder.

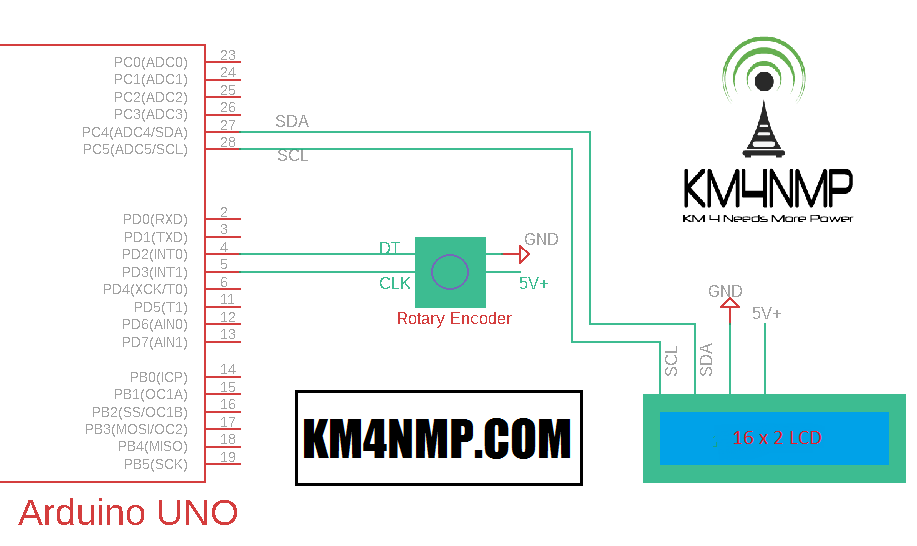

For the Pixie VFO we will be using an Arduino UNO. First we will connect the LCD Screen and Rotary Encoder. To cut down on connections an I2C LCD Screen will be used. The same library is used from past projects. The link to the website with the library and tutorial are https://www.ardumotive.com/i2clcden.html .

Advertisements
Rotary Encoder

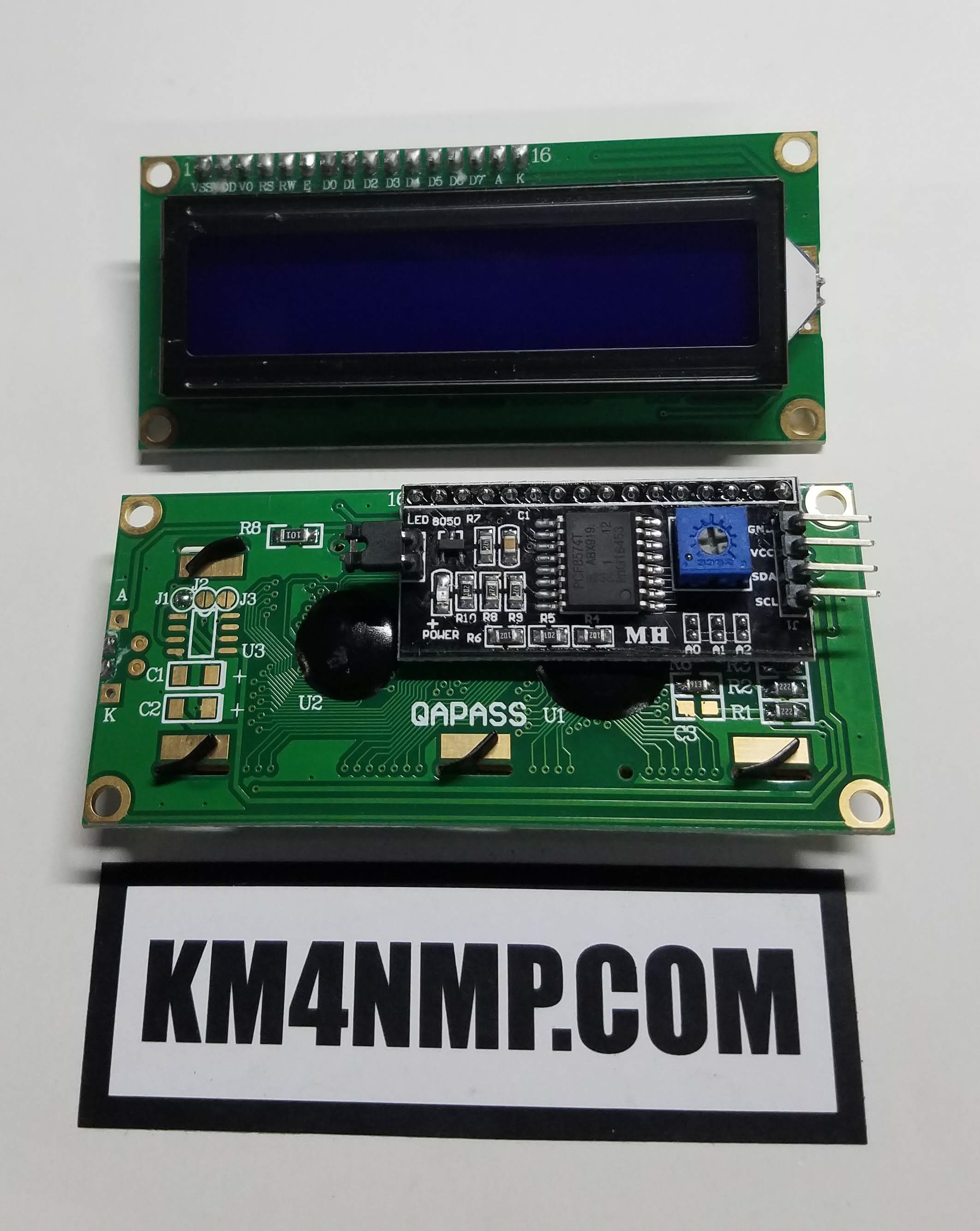

16×2 LCD Screen

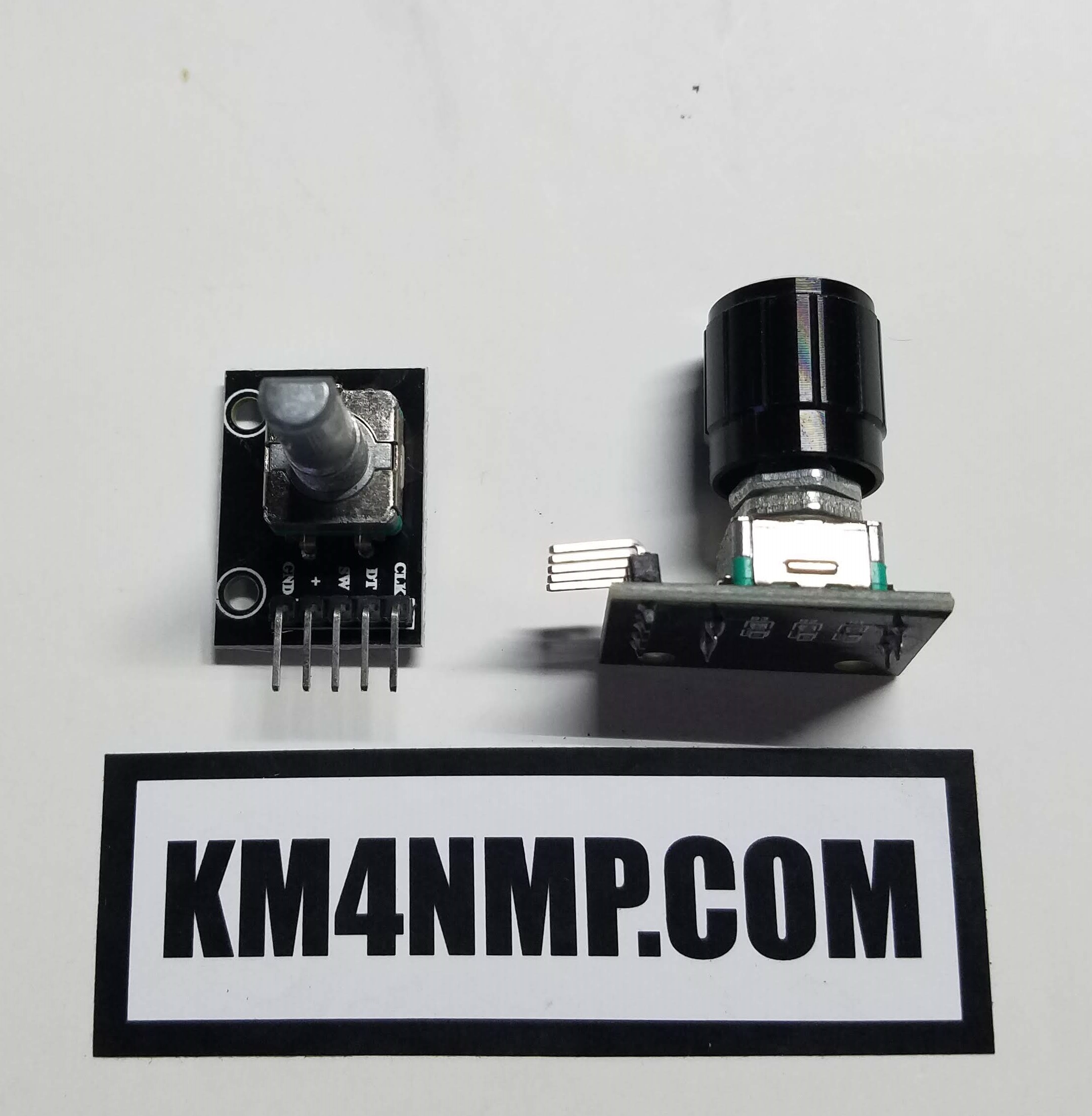

The Rotary Encoder used was purchased off of amazon. These were relatively cheap and came in a 10 pack. It came with a small knob that will work for testing. In the final VFO, a different knob will be used.

Advertisements

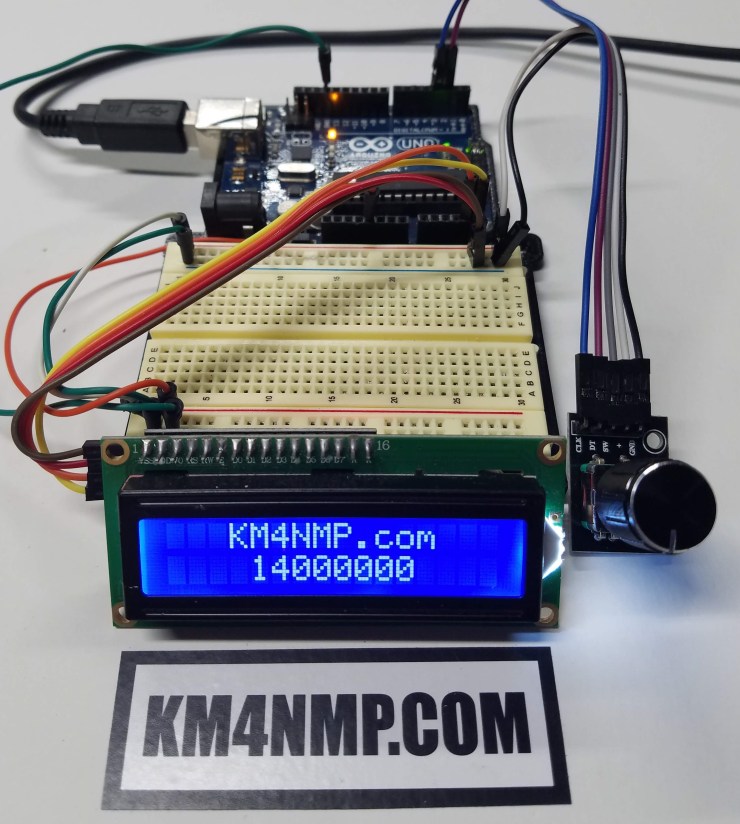

The test sketch displays a number on the screen. When the Rotary Encoder is Turned, the number will change. If you open a serial monitor window and turn the encoder, the direction will be indicated in the window. Depending on your rotary encoder, the direction may be backwards. An easy fix for this is to swap the DT and CLK line on the Arduino.

Advertisements

Rotary Encoder and LCD Screen Test Sketch

/*
Rotary Encoder and LCD Screen Test Sketch 8/20/19
Rotary Encoder - libraryhttps://github.com/mathertel/RotaryEncoder
I2C LCD - download library http://www.ardumotive.com/i2clcden.html
https://KM4NMP.com
*/
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <Rotary.h>


const int W_CLK_PIN = 8;
const int FQ_UD_PIN = 9;
const int DATA_PIN = 10;
const int RESET_PIN = 11;

LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);  // Set the LCD I2C address
Rotary r = Rotary(2, 3);
int TurnNum = 100;
long Freq = 14000000;

void setup() {
  Serial.begin(9600);
  lcd.begin(16,2);
  r.begin();
Advertisements
  PCICR |= (1 << PCIE2);
  PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);
  sei();

  lcd.setCursor( 3, 0 );
  lcd.print("KM4NMP.com");
  delay(2000);

}

void loop() {

  lcd.setCursor( 4, 1 );
  lcd.print( Freq );
  delay(200);
}

ISR(PCINT2_vect) {
  unsigned char result = r.process();
  if (result == DIR_NONE) {
    // do nothing
  }
  else if (result == DIR_CW) {
    Serial.println("ClockWise");
    Freq = Freq - TurnNum;
  }
  else if (result == DIR_CCW) {
    Serial.println("CounterClockWise");
    Freq = Freq + TurnNum;
  }
}

Links

http://www.mathertel.de/Arduino/RotaryEncoderLibrary.aspx

https://www.ardumotive.com/i2clcden.html

https://km4nmp.com/2019/08/11/preparing-to-modify-the-40m-pixie/

https://km4nmp.com/2019/08/03/assembling-the-40m-pixie/
