80m Off Center Fed Dipole

Advertisements

An Off Center Fed Dipole is an easy way to use one antenna for multiple bands. The 80m version of the OCF Dipole is supposed to be capable of 80, 40, 20, and 10m bands. With a tuner, you are also supposed to be capable of using some of the WARC bands. Construction is very similar to the standard dipole except a 4:1 Balun is required to match the feedpoint.

Advertisements

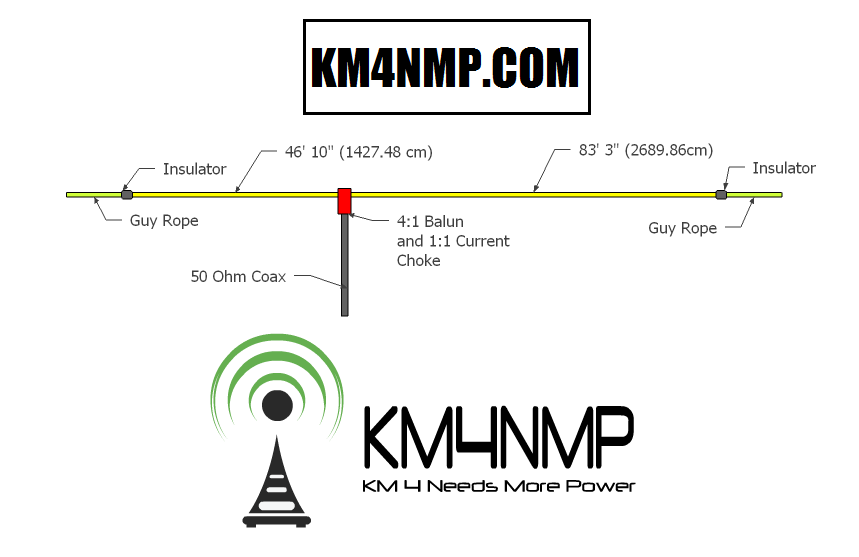

This Off Center Fed Dipole is set up for 80m. If you want a different frequency, calculate the length of a standard half wave dipole. Instead of dividing the length in half, multiply it by .64 and .36. Basically, one leg is 64% of the half wave and the other is 36%. At this position, the feedpoint impedance should be about 200 ohm.

Advertisements

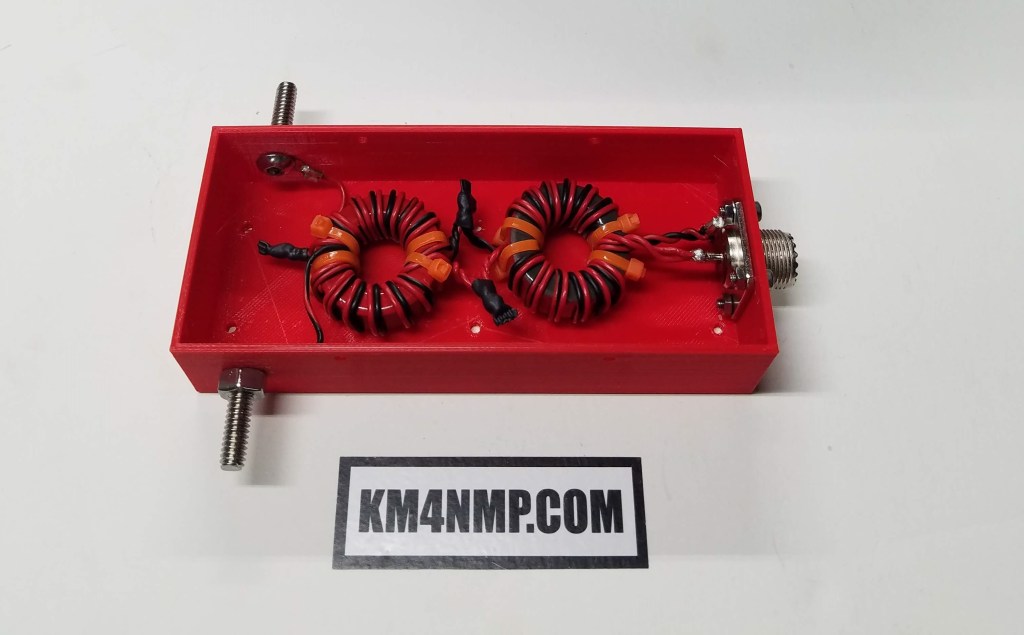

Use a good quality 4:1 Balun to match your OCF Dipole . For this project, I decided to build mine. To prevent common mode currents, a 1:1 current choke was also added. The core these baluns are constructed on is capable of 200 watts. This setup will be running no more than 100 watts. It is a good idea to over rate these so you do not run into overheating problems.

Advertisements

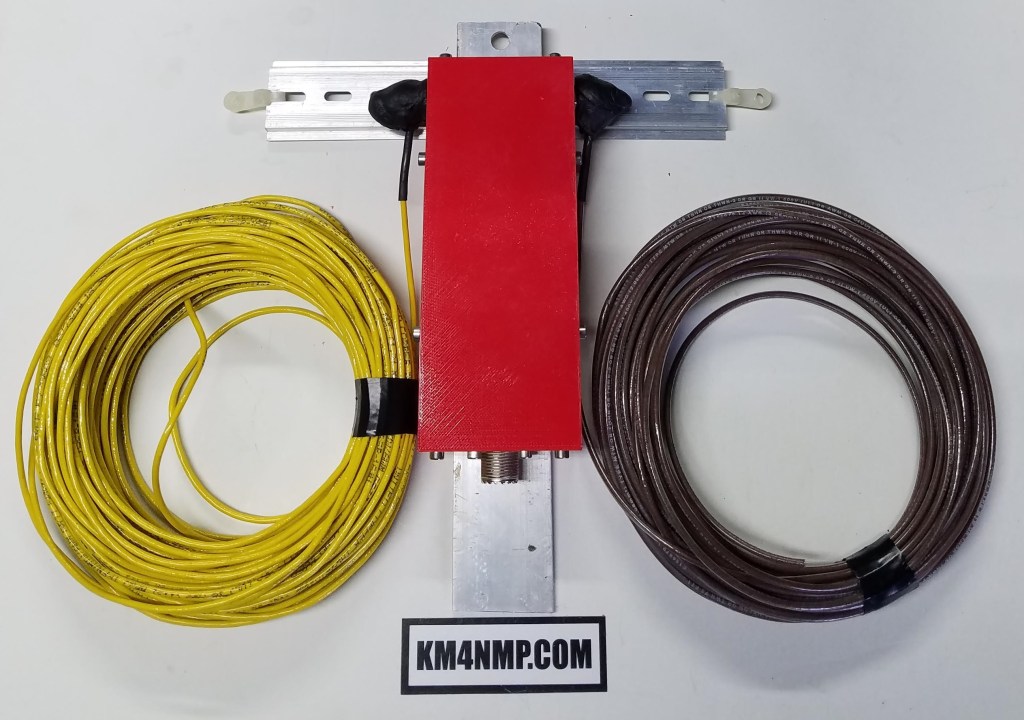

Aluminum flat bar and a small piece of aluminum DINN rail is used to carry the load of the 80m Off Center Dipole. All screws and nuts are stainless steel.

Advertisements

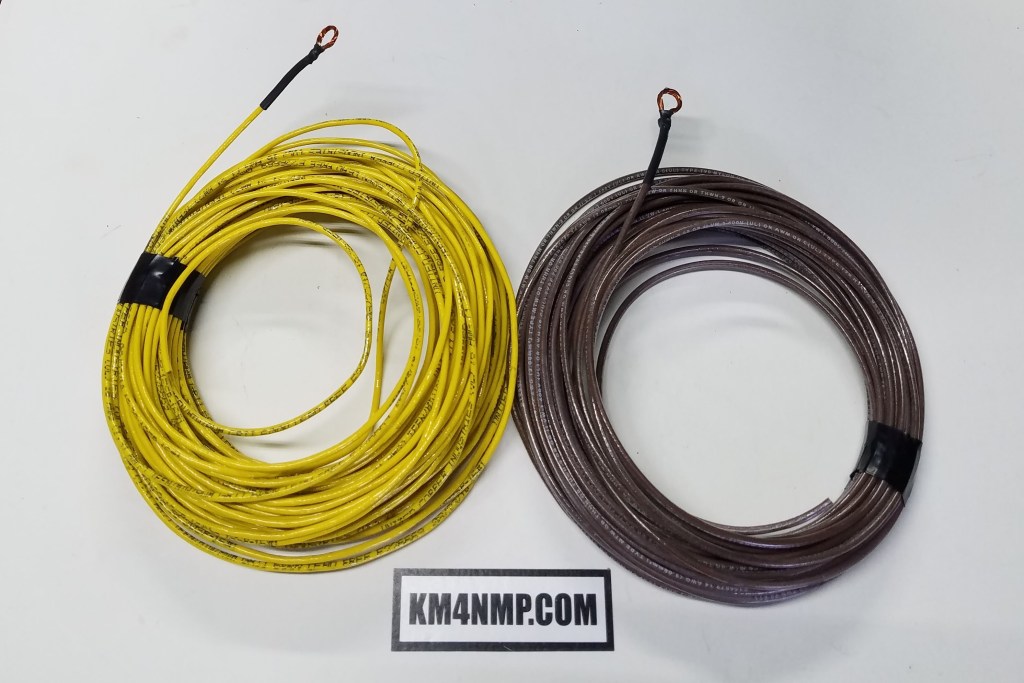

After cutting each leg to length, a loop was added to the end to attach to the balun. To make the loop, use a pencil or pen slightly large then the termination post. Strip the wire back and form a loop around the pencil. Solder the loop together so it does not come loose. Use heat shrink at the base of the loop to help keep water out.

Advertisements

After attaching the legs to the to the balun, use a good rubberized tape to weatherize the connections. To keep the Aluminum DINN rail from chaffing the wire, plastic ties are used to isolate the legs. The coax is also attached to the aluminum flat bar in the same fashion.

Advertisements

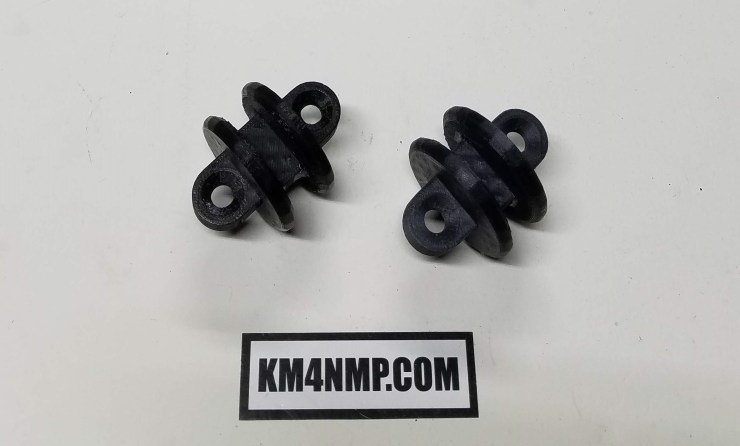

The insulator used are the same design I have used in other projects. They have worked very well and are much more ascetically pleasing than PVC couplers.

Advertisements

After getting the antenna in the air, I did not have time to tune it. Just to see where it was at, I ran a couple tests with the antenna analyzer. Most bands were showing 2:1 or more except 20m. Since the SWR wasn’t to bad, I decided to do a little testing with FT8. Several 20m contacts were made. With the assistance of the tuner, contacts were also made on 40 and 80m. Even without proper tuning, the Off Center Fed Dipole is preforming well. When tuning is done a update post will be made.

Advertisements
