ULN2003 and Arduino Programing and Testing

In our last post, we connected th UL2003 darlington pair array to the Arduino Mega. Today we will be going over programing and testing. For those of you that do not have an Arduino Mega, I will be including a programing sketch for the Arduino UNO.

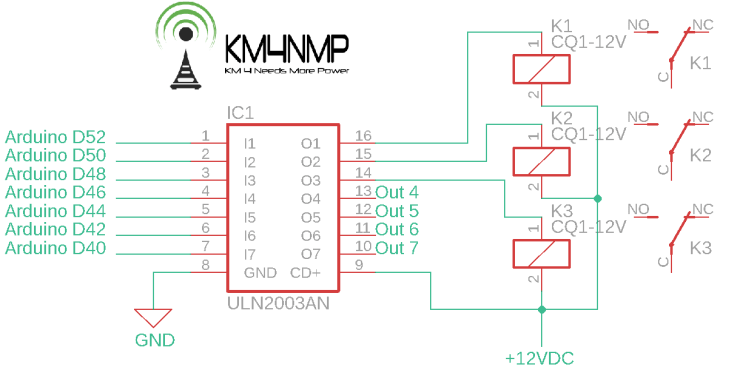

Schematic with relays
Advertisements

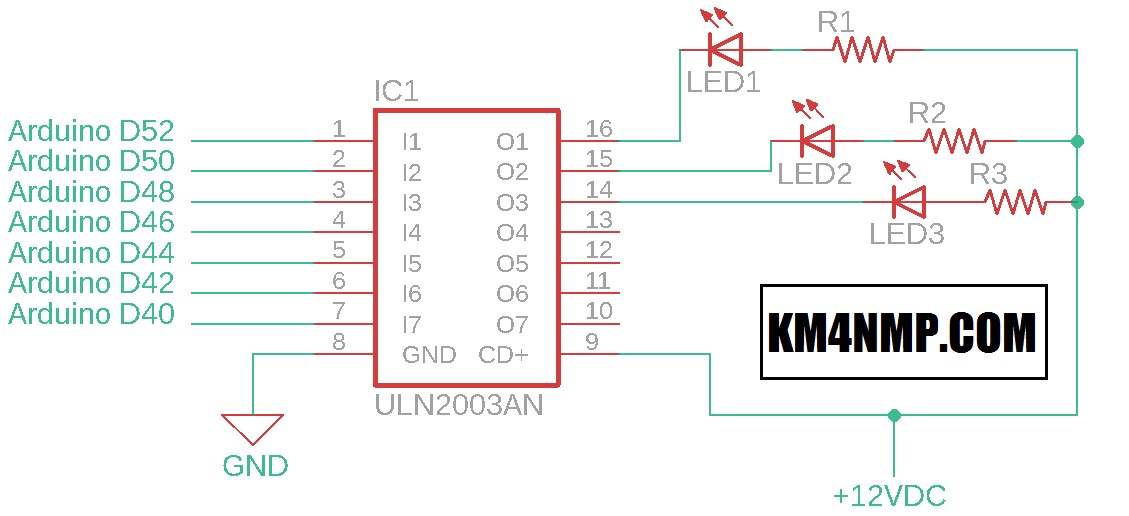

Since you cannot see a relay activate, leds have been attached to the ULN2003 outputs. The setup is the same with the exception of the led and resistor.

Arduino Mega

For testing, I have wrote a very simple sketch that turns each led on for 1 second and moves to the next. Copy and paste the code into your editing program. From there you should be able to upload to your Arduino.

Advertisements
/*Arduino Mega ULN2003 Darlington Array Test Sketch
  https://MacarrLabs.com/
  https://KM4NMP.com/
  Author: Matthew Carr, Macarr Labs LLC 5/25/19
  Arduino Mega Sketch
*/


void setup() {
  pinMode(52, OUTPUT);    //ULN2003 in 1
  pinMode(50, OUTPUT);    //ULN2003 in 2
  pinMode(48, OUTPUT);    //ULN2003 in 3
  pinMode(46, OUTPUT);    //ULN2003 in 4
  pinMode(44, OUTPUT);    //ULN2003 in 5
  pinMode(42, OUTPUT);    //ULN2003 in 6
  pinMode(40, OUTPUT);    //ULN2003 in 7

}

void loop() {
  digitalWrite(52, HIGH); // sets the digital pin 52 on
  delay(1000);            // waits for a second
  digitalWrite(52, LOW);  // sets the digital pin 52 off
  digitalWrite(50, HIGH); // sets the digital pin 50 on
  delay(1000);            // waits for a second
  digitalWrite(50, LOW);  // sets the digital pin 50 off
  digitalWrite(48, HIGH); // sets the digital pin 48 on
  delay(1000);            // waits for a second
  digitalWrite(48, LOW);  // sets the digital pin 48 off
  digitalWrite(46, HIGH); // sets the digital pin 46 on
  delay(1000);            // waits for a second
  digitalWrite(46, LOW);  // sets the digital pin 46 off
  digitalWrite(44, HIGH); // sets the digital pin 44 on
  delay(1000);            // waits for a second
  digitalWrite(44, LOW);  // sets the digital pin 44 off
  digitalWrite(42, HIGH); // sets the digital pin 42 on
  delay(1000);            // waits for a second
  digitalWrite(42, LOW);  // sets the digital pin 42 off
  digitalWrite(40, HIGH); // sets the digital pin 40 on
  delay(1000);            // waits for a second
  digitalWrite(40, LOW);  // sets the digital pin 40 off

}
Advertisements

Just incase you don’t have an Arduino Mega, I decided to do a quick setup for the Arduino Uno. The main change is the pins for the input of the ULN2003.

Arduino UNO
Advertisements
/*Arduino Mega ULN2003 Darlington Array Test Sketch
  https://MacarrLabs.com/
  https://KM4NMP.com/
  Author: Matthew Carr, Macarr Labs LLC 5/25/19
  Arduino UNO Sketch
*/


void setup() {
  pinMode(1, OUTPUT);    //ULN2003 in 1
  pinMode(2, OUTPUT);    //ULN2003 in 2
  pinMode(3, OUTPUT);    //ULN2003 in 3
  pinMode(4, OUTPUT);    //ULN2003 in 4
  pinMode(5, OUTPUT);    //ULN2003 in 5
  pinMode(6, OUTPUT);    //ULN2003 in 6
  pinMode(7, OUTPUT);    //ULN2003 in 7

}

void loop() {
  digitalWrite(1, HIGH); // sets the digital pin 1 on
  delay(1000);            // waits for a second
  digitalWrite(1, LOW);  // sets the digital pin 1 off
  digitalWrite(2, HIGH); // sets the digital pin 2 on
  delay(1000);            // waits for a second
  digitalWrite(2, LOW);  // sets the digital pin 2 off
  digitalWrite(3, HIGH); // sets the digital pin 3 on
  delay(1000);            // waits for a second
  digitalWrite(3, LOW);  // sets the digital pin 3 off
  digitalWrite(4, HIGH); // sets the digital pin 4 on
  delay(1000);            // waits for a second
  digitalWrite(4, LOW);  // sets the digital pin 4 off
  digitalWrite(5, HIGH); // sets the digital pin 5 on
  delay(1000);            // waits for a second
  digitalWrite(5, LOW);  // sets the digital pin 5 off
  digitalWrite(6, HIGH); // sets the digital pin 6 on
  delay(1000);            // waits for a second
  digitalWrite(6, LOW);  // sets the digital pin 6 off
  digitalWrite(7, HIGH); // sets the digital pin 7 on
  delay(1000);            // waits for a second
  digitalWrite(7, LOW);  // sets the digital pin 7 off

}
